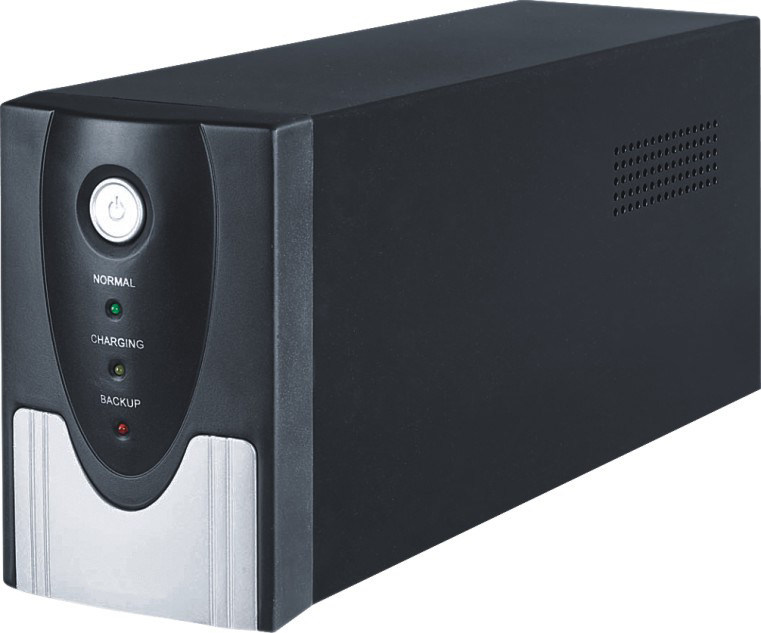

Uninterruptible Power Supply Battery Charging Current 0.5A , Battery Backup Power Supply

Uninterruptible Power Supply Battery Charging Current 0.5A , Battery Backup Power Supply

  • High Light

    uninterruptible power supply battery

    ,

    uninterruptible power systems

  • Applicance
    Home, Office Computer
  • Input Voltage
    220VAC
  • In. PF.
    0.6
  • Shutdown Automatically Charge
    Yes
  • Lights And Alarms
    Line Mode, Battery Replacement, Battery Mode, Fault Mode, Battery Mode, Low Battery Voltage, Over Load
  • Communication Interface
    Intelligent RS-232, Intelligent USB, RJ45, RJ11/12
  • Place of Origin
    Shenzhen, China
  • Brand Name
    CONSNANT
  • Certification
    ICE, ISO
  • Model Number
    KT
  • Minimum Order Quantity
    200 pieces
  • Price
    Negotiable
  • Packaging Details
    Export standard package
  • Delivery Time
    15-21 days against deposit
  • Payment Terms
    T/T, L/C
  • Supply Ability
    5000 pieces per month

Uninterruptible Power Supply Battery Charging Current 0.5A , Battery Backup Power Supply

Auto Restart Off Line UPS Uninterrupted Power Supply Charging Current 0.5A



Quick Details:



Model: 500VA 800VA 1000VA 1200VA
Input Voltage: 220Vac

Input Frequency: 50Hz,

Input Current(Max.): 3.6A , 5.7A , 7.1A , 8.5A
Capacity:  500VA/300W;  800VA/480W;  1000VA/600W;  1200VA/720W





Technical Index:



Technical specification
Input electrical features
Rated voltage 220Vac
Utility voltage range (140~290)±5Vac
Input power factor 0.98 220VAC,full R load
Input frequency 50/60Hz Auto select

Auto select

(Input frequency)

The nominal frequence is configured according to measured input frequence during the unit starting.
If measured frequence is > 55Hz, nominal frequence setting will be 60Hz
If measured frequence is ≤ 55Hz, nominal frequence setting will be 50Hz
Mains frequency range (40~70)±1Hz
Generator Support generator input Generator rating≥2*UPS rating
Input current(Max) 3.6A Max 5.7A Max 7.1A Max 8.1A Max
Auto restart Support When the mains recovers if the UPS is shutdown for battery low or remote shutdown
Output electrical features
Rated voltage 220Vac
Output voltagerange(Linemode) 220Vac±10%
Output voltage range(battery mode) 220Vac± 5%
Output capacity 500VA/ 300W 800VA/ 480W 1000VA/ 600W 1200VA/ 720W
Output Power Factor 0.6
Output current(Max) 2.3A Max 3.6A 4.5A Max 5.4A Max
Output wave(Line mode) Sine wave
Output wave(battery mode) Square wave
Output frequency (Line mode) Synch with mains input
Output frequency (battery mode) (50/60)±1Hz (Frequency self-adapt system)
Transfer time ≤10ms





Overload protection

110% < Load ≤ 120%, buzzer beeps ; output shuts off in 5 mins, and buzzer beeps continuously.
Load > 120%, output shuts off, buzzer beeps continuously.

Short circuit (battery mode) Output shuts off, buzzer beeps continuously.
Batteries features
  Sealed Lead-acid Batteries Maintenance of Free
Rated battery voltage 12VDC 12VDC 24VDC 24VDC
Amount/Capacity 1PC/ 12V7AH 1PC/ 12V9AH 2PCS/ 12V7AH 2PCS/ 12V9AH
Backup time > 6Mins (Half load)
Low battery voltage ≤11V ≤22V
Battery shutdown voltage 10V±0.5V 20V±0.5V
Battery overvoltage protection 14.5V±0.5V 29V±0.5V
Charger voltage 13.7V±0.5V 27.4V±0.5V
Charging current 0.5A
Shutdown automatically charge Yes
Lights and alarms
Line mode, Battery replacement, Battery mode, Fault mode, Battery mode, Low battery voltage, Over load Solid green led lighting Green led flash when it was in the off-mode charging
Communication interface
Intelligent RS-232, Intelligent USB, Communication interface, RJ45, RJ11/12 Optional
Monitoring software, line of communication Gaving together with machine
Environment
Operating temperatures 0℃~40℃
Altitude <1000M
Noise ≤35dB (1m from front panel)
Storage temperatures -15℃~45℃
Relative humidity 0%~90%(No condensation water)
Cooling Natural
Appear
LED/LCD LED displays UPS status
Standard
Safety GB 4943.1-2011
Transportation
Drop test GB-T4857-18
Vibration test B-WR1-129(GB-T14715-93)
Machinery features
Size  L×W×H(mm) 295x90x140 329X90X145 345x122x190
Net weight (kg) 4.2 5.4 7.9 9
