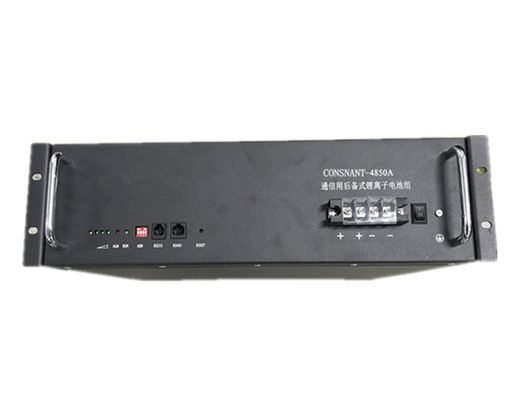

Minil Capacity 10Ah Lithium Iron Battery Pack With Flexible Battery System

Minil Capacity 10Ah Lithium Iron Battery Pack With Flexible Battery System

  • High Light

    lithium iron phosphate battery pack

    ,

    48v 20ah lithium ion battery

  • Rated Voltage
    48V
  • Rated Capacity
    10Ah
  • Balance current
    50mA
  • Balance Condition
    ≥3.5V, Differential Pressure 50mV
  • Communication
    RS485、RS232
  • Weight
    ≈32Kg
  • Place of Origin
    SHenzhen, China
  • Brand Name
    CONSNANT
  • Certification
    ICE, IOS
  • Model Number
    CNB4810A
  • Minimum Order Quantity
    50
  • Price
    Negotiable
  • Packaging Details
    Export standard Package
  • Delivery Time
    15-30 days agaist the order quantity
  • Payment Terms
    30% T/T in advance, L/C, Western Union
  • Supply Ability
    1000 pieces per month

Minil Capacity 10Ah Lithium Iron Battery Pack With Flexible Battery System



Minimal Capacity 50AH Lithium Iron Battery Pack With Flexible Batt. System





The battery bank in the description is suitable for power products of back up.







Cell model CNB4850
Capacity(0.5C) 50Ah
Rated voltage(V 3.2V
Typical Impedance (mΩ) ≤1 mΩ
Battery material lithium iron phosphate
PACK Combination method 1P16S
Minimal capacity(0.5C) 50Ah
Nominal voltage 51.2V
Max. charge voltage 58.2V
Discharge cut‐off voltage 40V
Max Charge current (0.5C)25A
Max Working current (1C)50A
Standard charge current (0.2C)10A
Standard charge current (0.5C)25A
Pack Impedance standard ≤100 mΩ
Weight (Approx.) ≈32Kg
Max. dimension(L×W×H)(mm) ≤420*482*133
Operating temperature Charge temperature 0℃~45℃
Discharge temperature ‐20℃~55℃
Battery Management System Single cell over‐charge cut‐off voltage 3.7V
Over‐charge release voltage 3.35V
Single cell under‐discharge cut‐off voltage 2.5V
Discharge release voltage 2.7V
Over‐discharge cut‐off current 35A
Over‐discharge cut‐off current delay 1S±0.5S
Short‐circuit protection 80A
Short‐circuit protection delay ≤1mS
Condition for the recovery of over‐current and Short‐circuit Charge to remove
Balance current 50mA
Balance Condition ≥3.5V, differential pressure 50mV
Communication RS485,RS232







Minil Capacity 10Ah Lithium Iron Battery Pack With Flexible Battery System 0
